Setting up a Video Wall

Setting up a Video Wall

Configure the displays

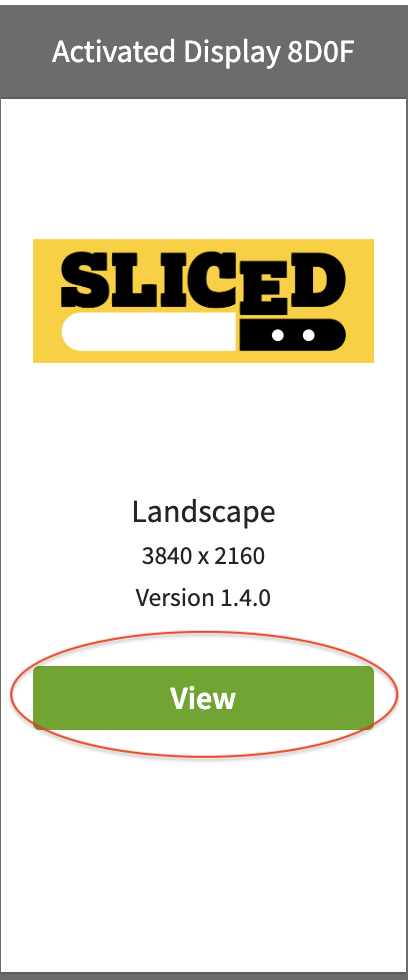

Select the display - click 'view' button

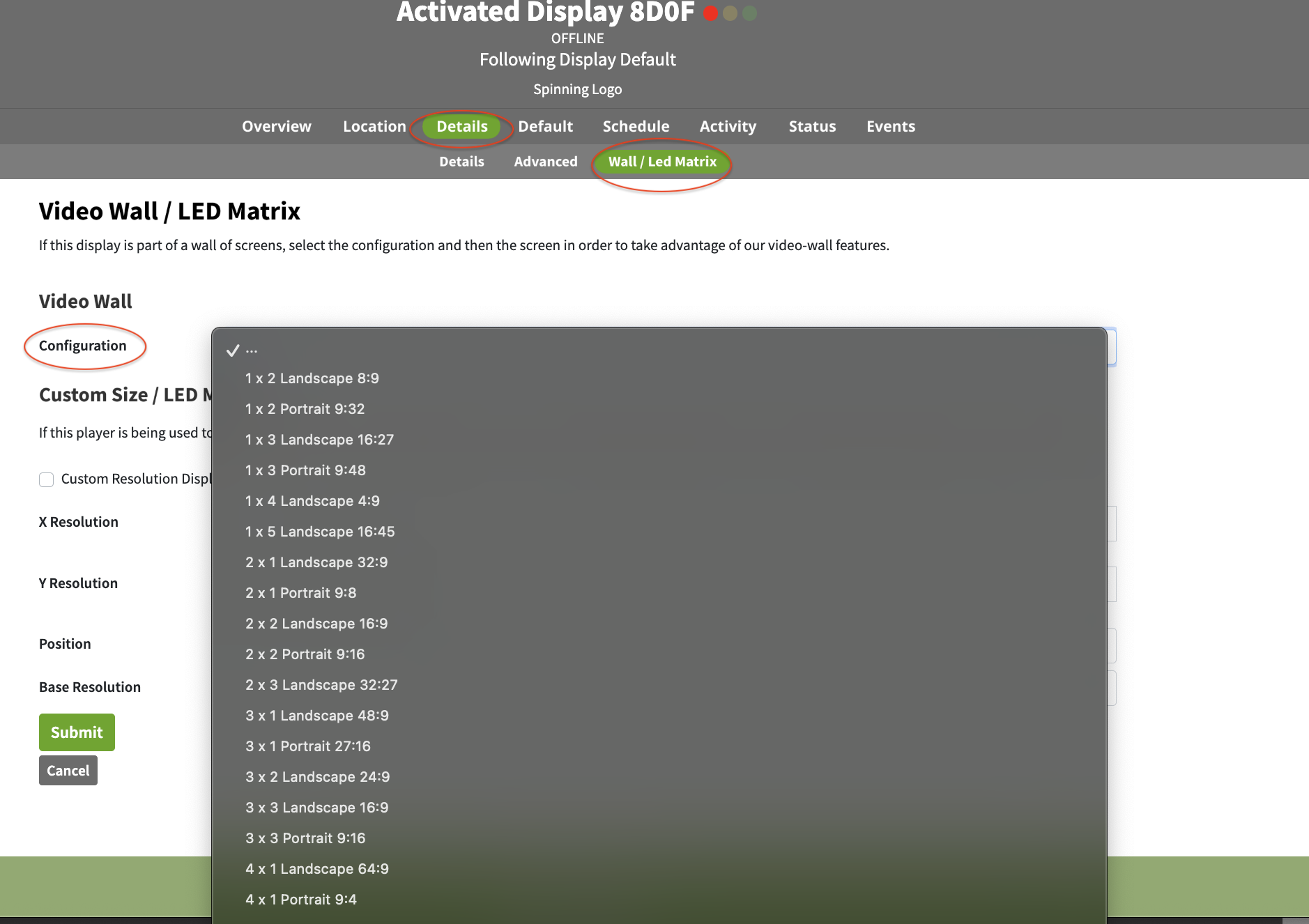

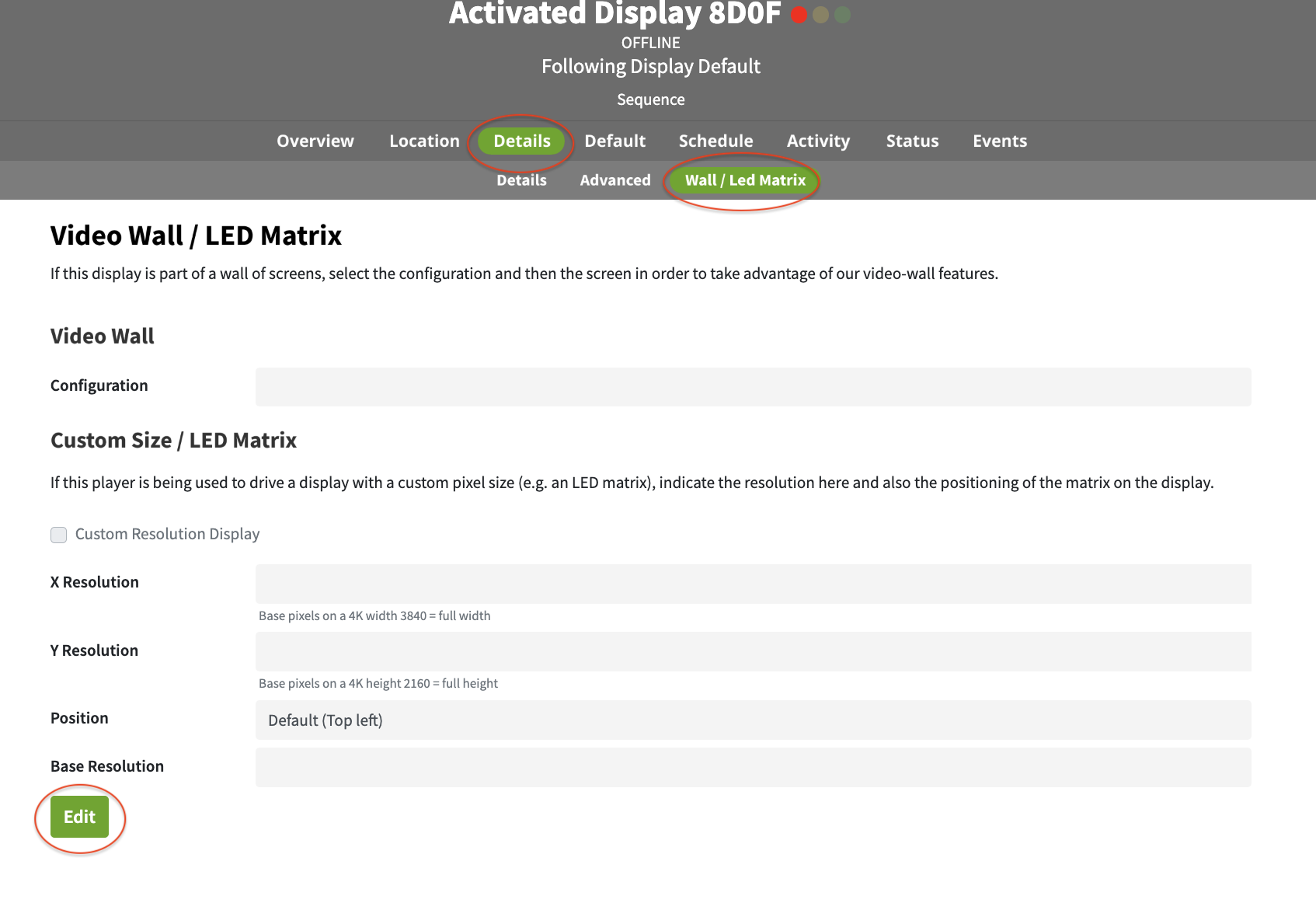

Select 'Details' and 'Wall Led Matrix' in the navigation bar. Click 'Edit'

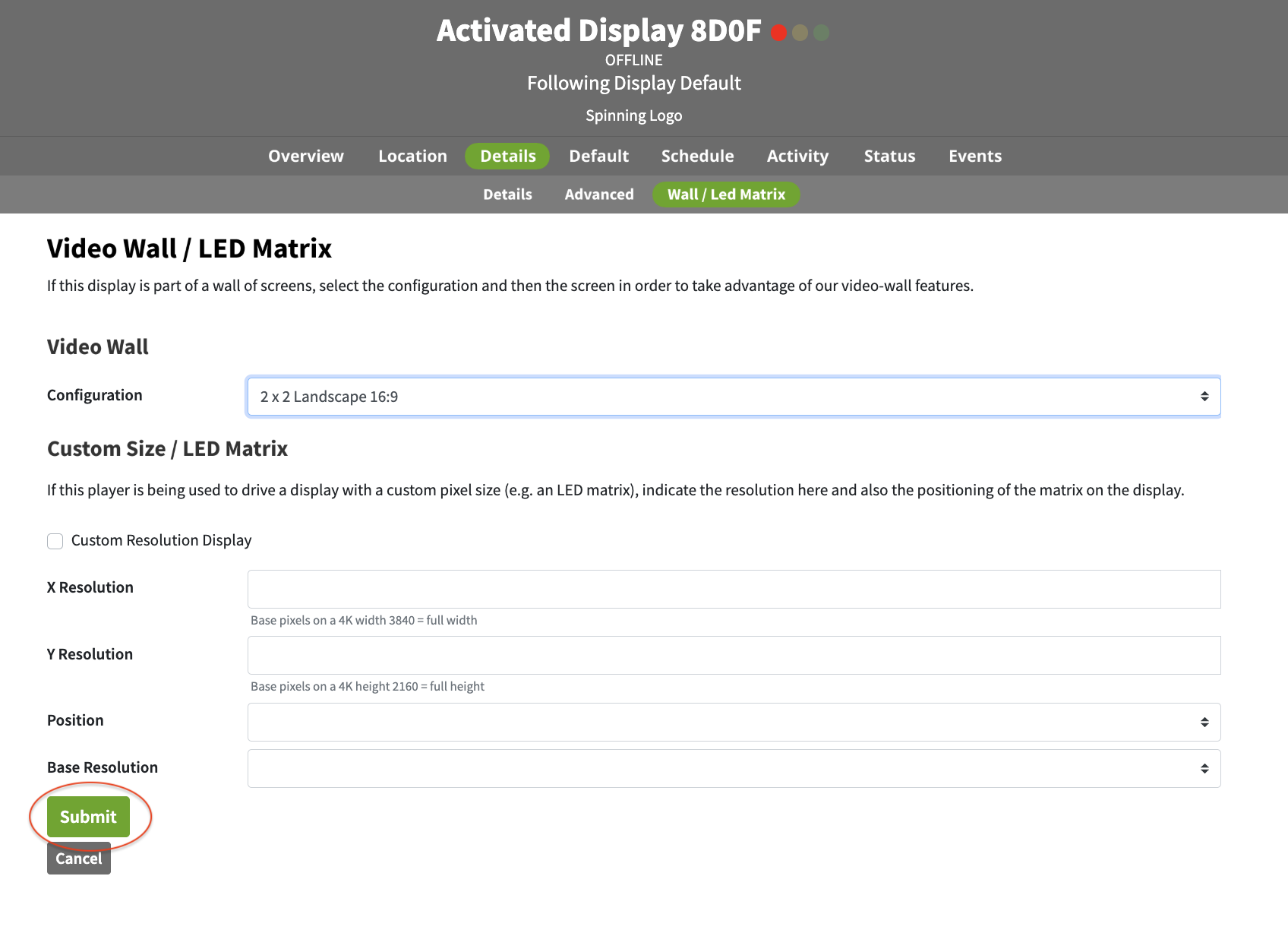

Click the 'Configuration' dropdown and select the format that matches the display install configuration.


Click 'Submit'.  The 'Screen' option show now appear

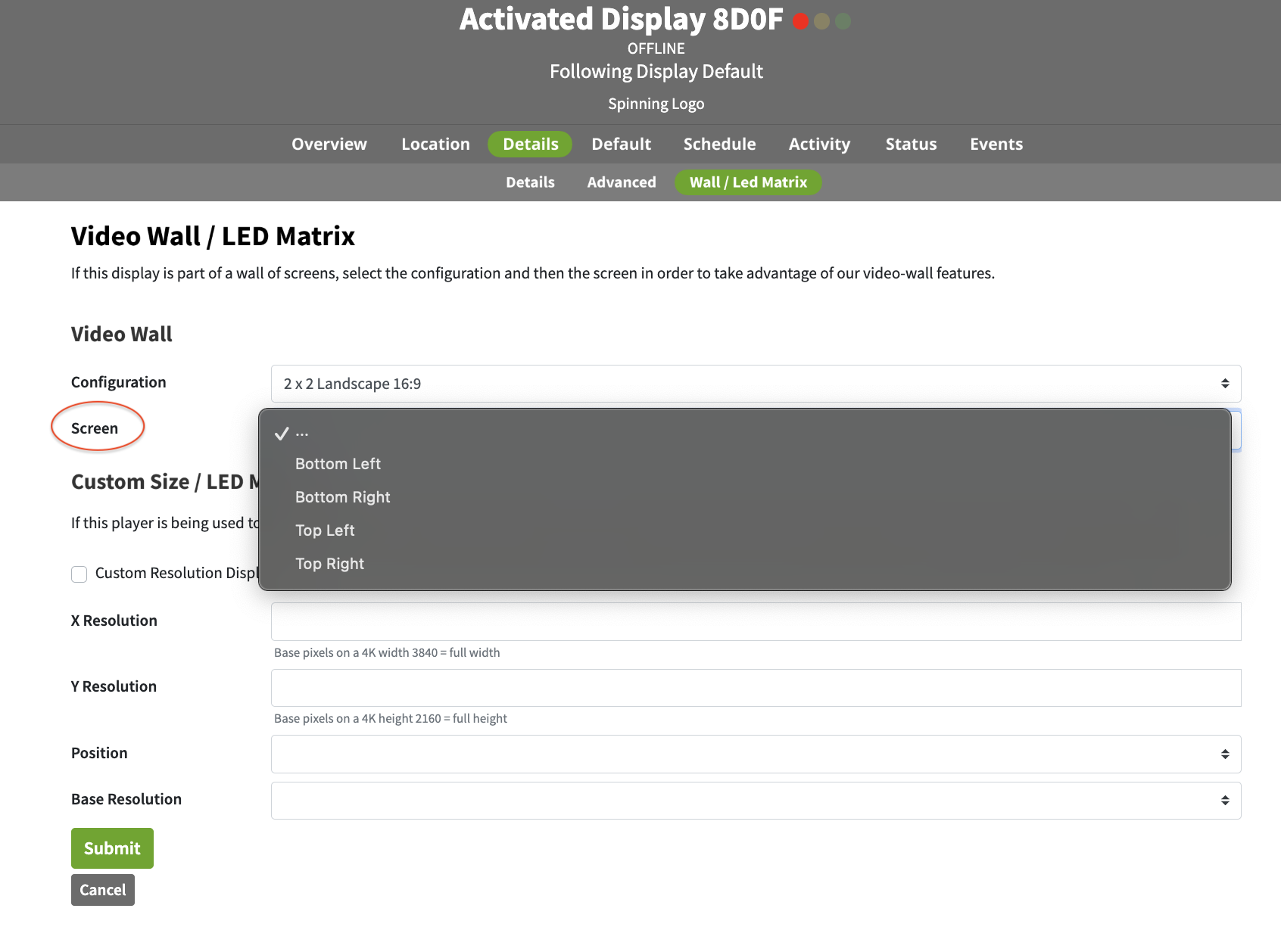

Click 'Edit' and from the 'Screen' dropdown select the matrix location that corresponds with the installed display.  Click 'Submit'

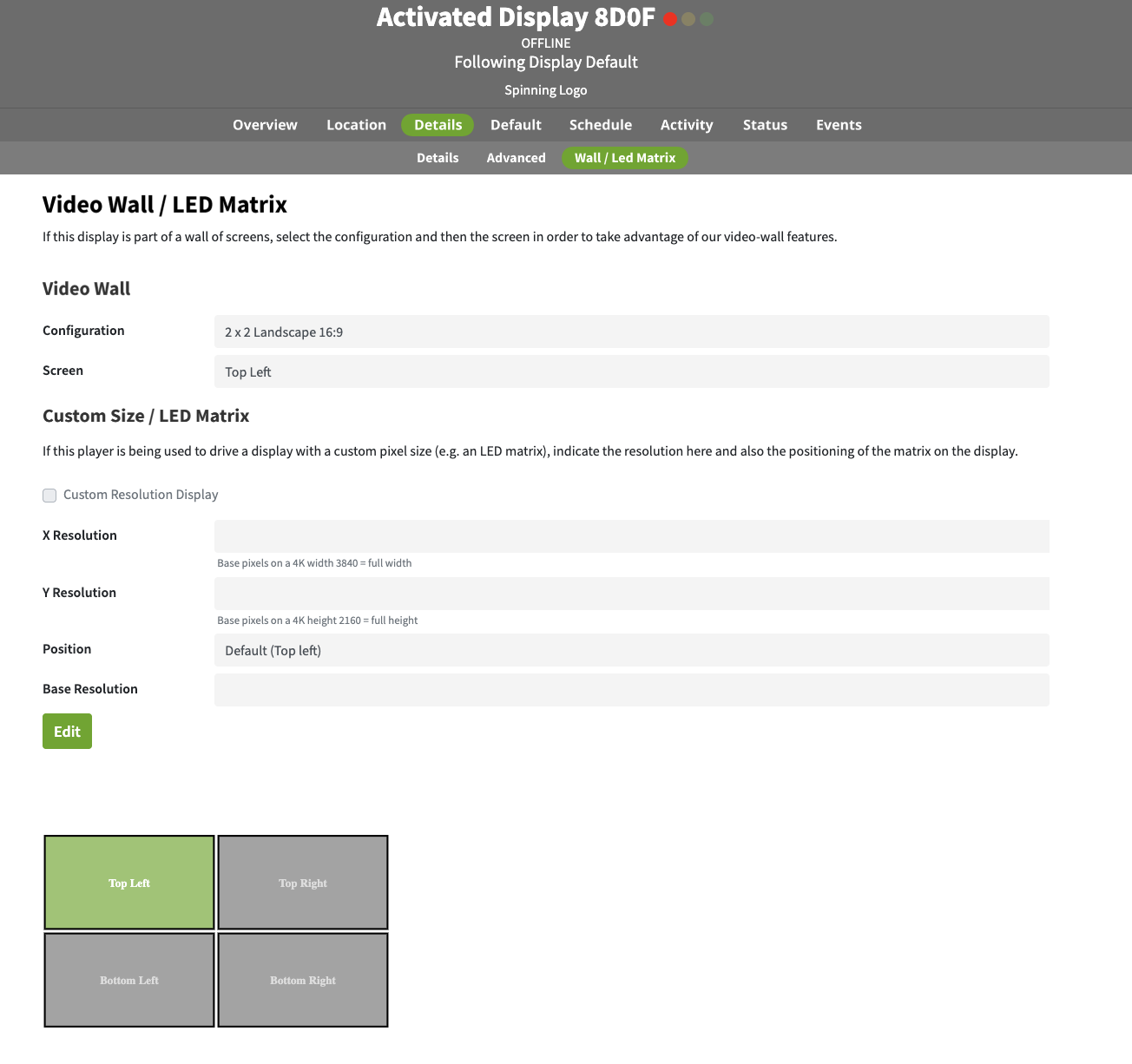

A graphic showing the display matrix and display location will now appear at the bottom of the page

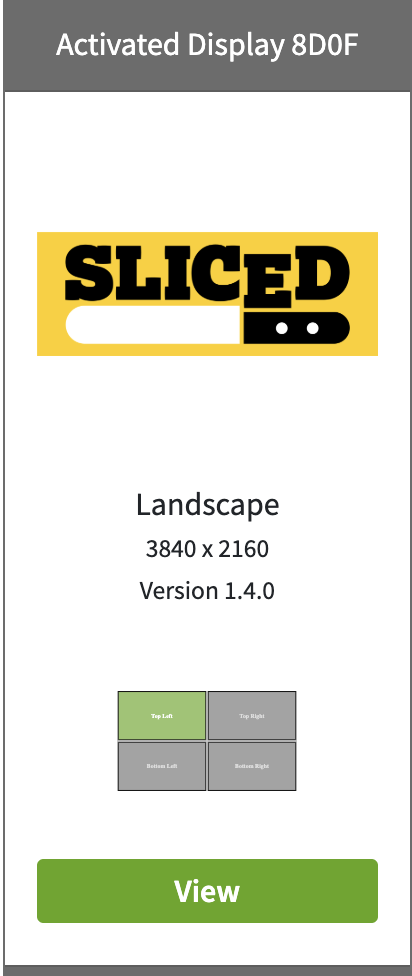

The matrix and location are also shown on the display main page

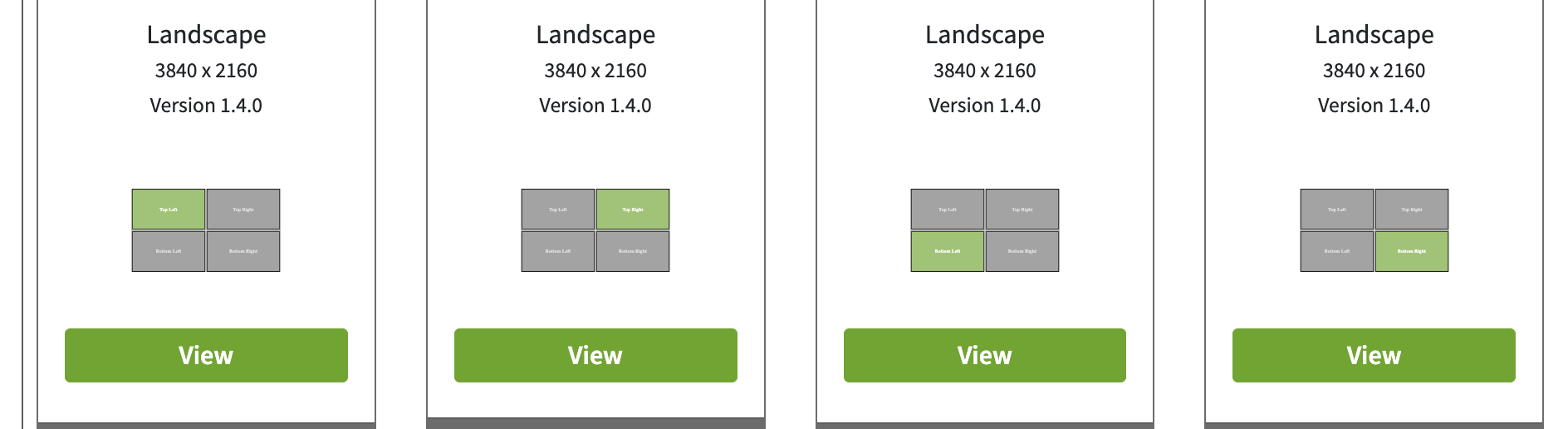

Repeat the process for the other displays in video wall.  On completion all the displays will display the matrix and their location




Video Wall Content

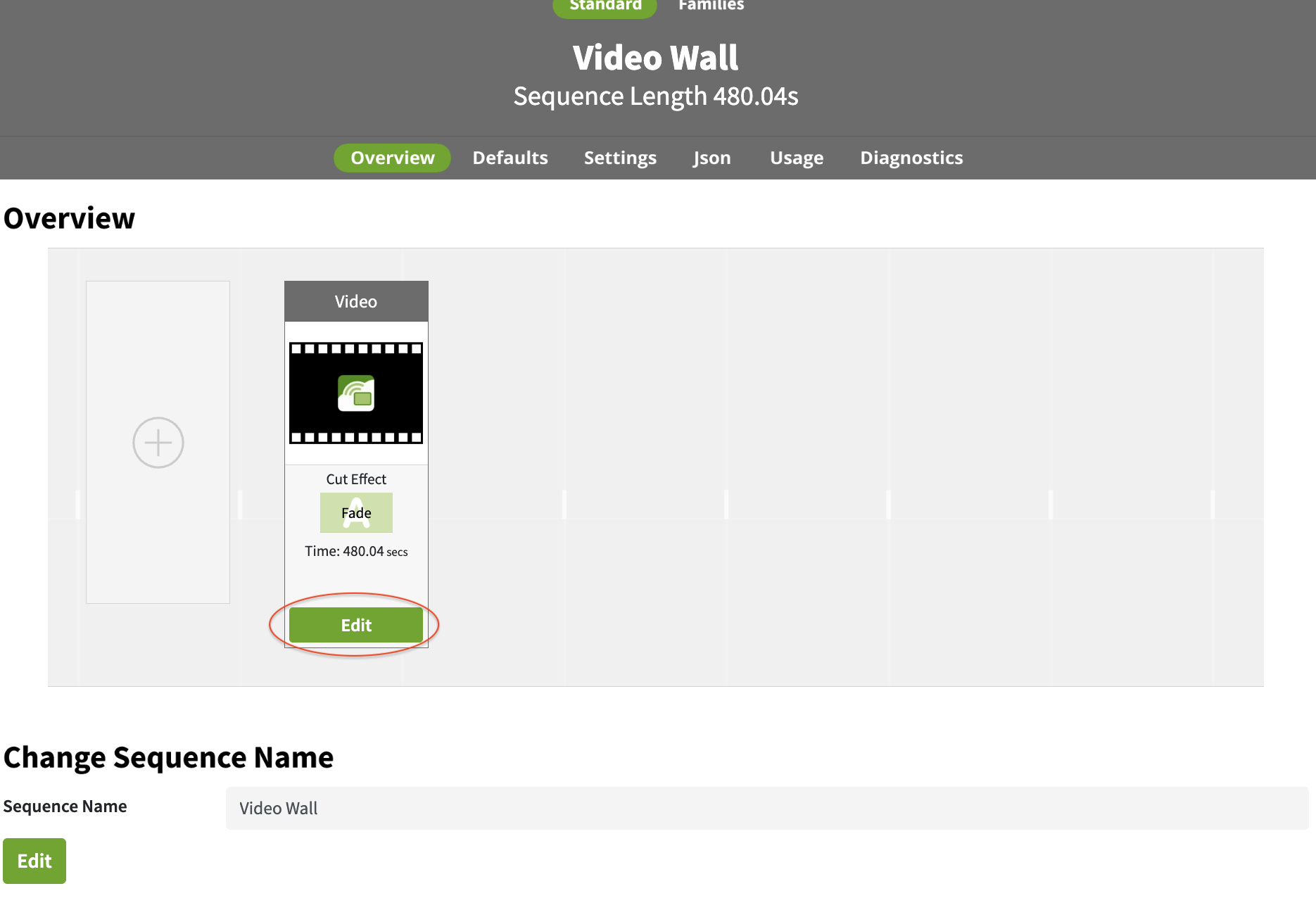

Select the video/ sequence and click 'Edit'

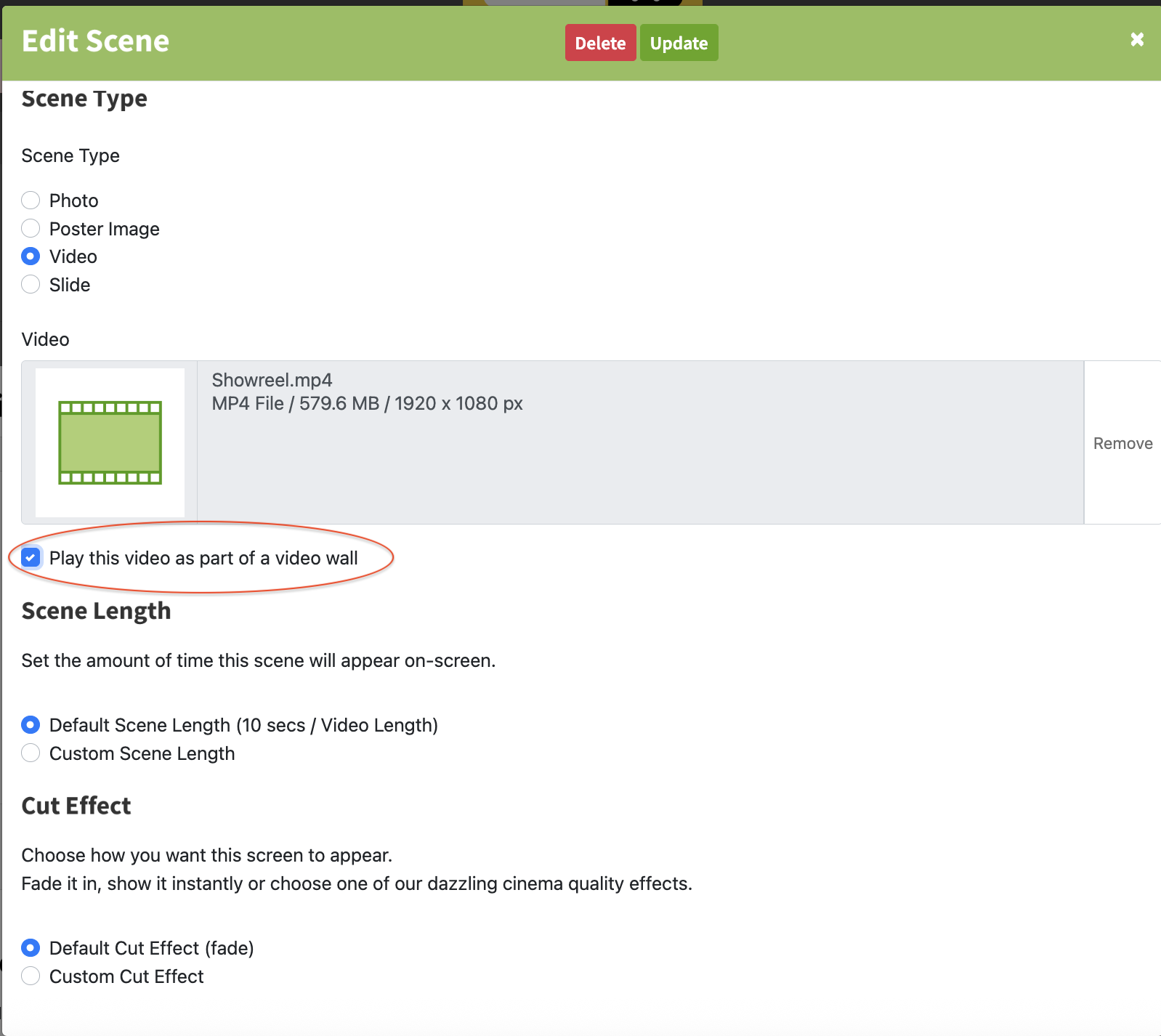

Check box 'Play this video as part of a video wall' and click 'Update'

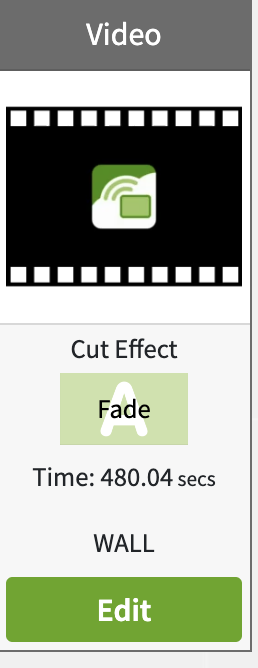

The video will now be flagged with 'WALL'

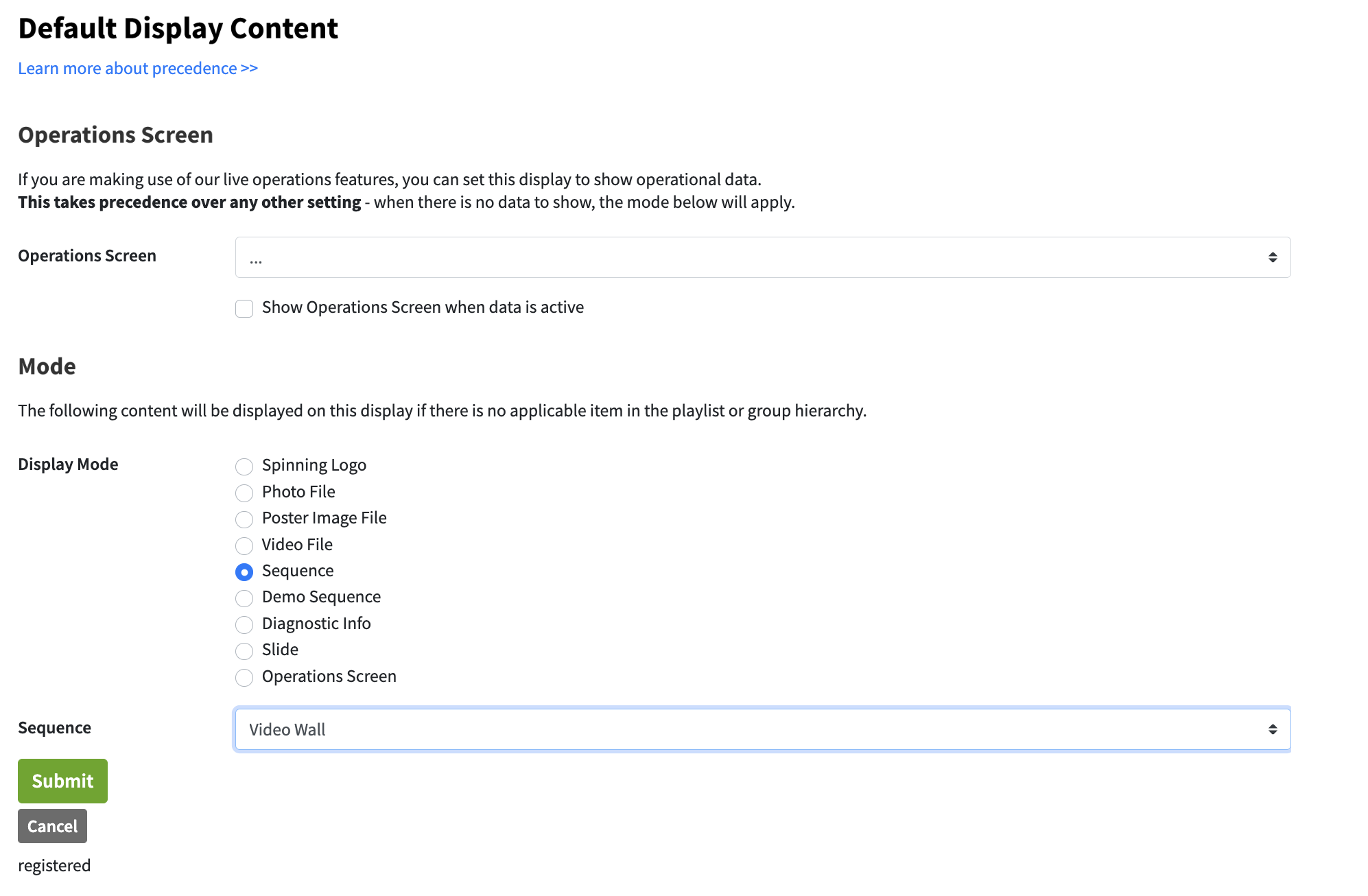

Set all displays in the video wall to play the same video/ sequence via Default Display Content/ Schedule Content
